| MODEL | HD-700 | HD-1000 | HD-1200 | HD-1500 | HD-1800 |
|---|---|---|---|---|---|

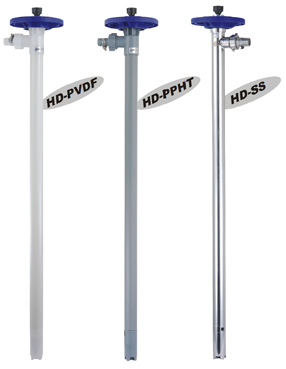

| 펌프 재질 | HD-PPHT (PP) / HD-PVDF (PVDF) / HD-SS (SS 316) | ||||
| 펌프 길이 | 700mm | 1000mm | 1200mm | 1500mm | 1800mm |
| 펌프 적용 | 20L BOTTLES | 200L DRUM | BARREL &
TANKS | IBC'S | LARGE STORAGE VESSELS |
| Material | Max. Temp. | Common Applications | |
|---|---|---|---|
| PPHT (Polypropylene) | 80℃ / 175℉ | Acetic Acid | Nitric Acid - 20% |
| Sulfuric Acid | Alkalies | ||
| Hydrochloric - 20% | Ferric Chloride | ||
| PVDF | 100℃ / 212℉ | Concentrated Nitric Acid | Propionic Acid |
| Sulfuric Acid-66 Baume | Stearic Acid | ||
| Sodium Hypochlorite | Hydrofluoric Acid | ||
| SS | 100℃ /212℉ | Alcohol | Isopropyl Ether |
| Gasoline | Solvents | ||
| Aqueous Ammonia | Petroleum Products | ||
| MODEL | HD-E1-V : 110V, 1P,50-60HZ ,485W |
|---|---|
| HD-E2-V : 220V, 1P,50-60HZ ,485W | |
| Max.Viscosity | 1,000 cps |
| Max.RPM | 10,000 RPM |
| Weight | 3kg |
| Run Dry Protector / Safety Handling Switch / IP44 | |
| Chemical resistant casing / 5m electronic wire&plug | |
| Max.Inlet Air pressure | 6.8 bar |
|---|---|
| Air Consumption | 10.38 L/sec@6.3bar |
| Air connection | 1/8" |
| Material | Cast Iron / Aluminum |
| Max.Viscosity | 700 cps |
| Accessory | Muffler , Air regulator |
| Option | F(filter)R(regulator)L(lubricator) Combination |
| 7,500RPM (Air pressure 5 bar) 9,500 RPM(Air pressure 7bar) 370w , 1kg | |
| Air Consumption | 0.9 L /sec @ 6 bar |
|---|---|
| Air Connection | 1/4" |
| Material | Aluminum |
| Option | Air filter , regulator |
| Weight : 1.2 kg / 560w | |
| Air Consumption | 14.1 L/sec @6.3bar |
|---|---|
| Max.Inlet Air pressure | 7 Bar |
| Air connection | 1/4" |
| Material | SUS / Aluminum |
| Max.Viscosity | 1,200 cps |
| Accessory | Muffler , Regulator |
| Option | F(filter)R(regulator)L(lubricator) Combination |
| 8,500 RPM(Air pressure 5bar) 11,000RPM(Air pressure 7bar) | |
| 400w , Weight : 1.8kg | |
| Air Consumption | 131 L/sec @6.8bar |
|---|---|
| Max.Inlet Air pressure | 7 Bar |
| Air connection | 1 1/4" |
| Material | Cast Iron |
| Max.Viscosity | 100,000 cps |
| Accessory | Muffler , Regulator |
| Option | F(filter)R(regulator)L(lubricator) Combinati |
| Max.RPM | 2,000 RPM |
| 7.5kw , Weight : 36kg | |

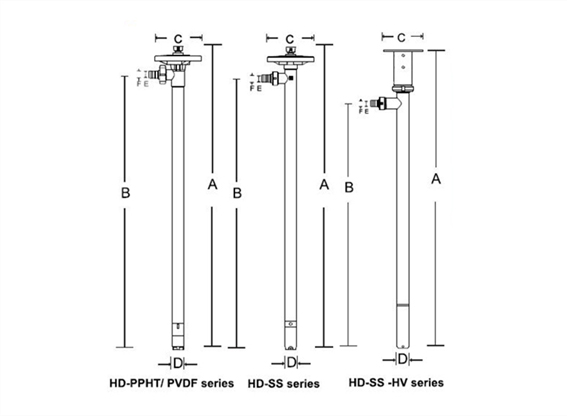

DIMENSION
| Meterial | Length | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| PPHT | 700 | 810 | 700 | 170 | 41 | 19 | 27 |
| 1000 | 1100 | 1000 | 170 | 4 | 19 | 27 | |
| 1200 | 1290 | 1200 | 170 | 14 | 19 | 27 | |
| 1500 | 1590 | 1500 | 170 | 14 | 19 | 27 | |
| 1800 | 1890 | 1800 | 170 | 41 | 19 | 27 | |
| PVDF | 700 | 810 | 700 | 170 | 41 | 19 | 26 |
| 1000 | 1100 | 1000 | 170 | 41 | 19 | 26 | |
| 1200 | 1300 | 1200 | 170 | 41 | 19 | 26 | |
| 1500 | 1600 | 1500 | 170 | 41 | 19 | 26 | |
| 1800 | 1900 | 1800 | 170 | 41 | 19 | 26 | |
| SS | 700 | 810 | 700 | 170 | 42 | 20 | 27 |
| 1000 | 1100 | 1000 | 170 | 42 | 20 | 27 | |
| 1200 | 1300 | 1200 | 170 | 42 | 20 | 27 | |
| 1500 | 1600 | 1500 | 170 | 42 | 20 | 27 | |
| 1800 | 1900 | 1800 | 170 | 42 | 20 | 27 | |
| SS-HV | 1000 | 1300 | 1025 | 166 | 56 | 28 | 33 |
